Ultra taking-out speed.

  Adjustable gripper extraction angle(+-30)
  High precision and enhanced dyrability with L.M RALL on crosswise axis.



The necessary information is displayed on L.C.D for operatiion turns and mode selection, which are needed

    to adjust the robot.
  Recall display of up to 1024 ALARM screen.
  RS-422 method cable is connected between teaching pendant and robot body, which is not influenced by
    noise and makes speed communication posssible.
  Digiatal setting for timer values.
  The operator can use safery key in manual operating.
  All informations are shown on the L.C.D screen including input and Output signal between I.M.M and robot
    (alarm and error message, also alarm history).

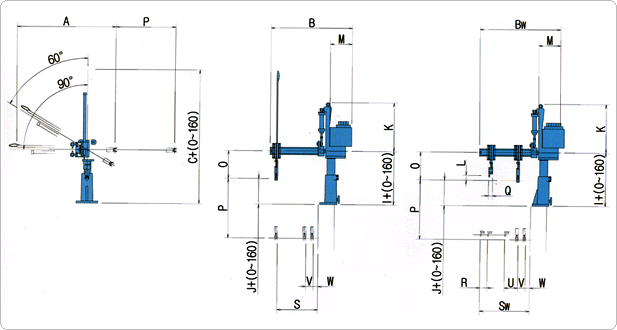

MODEL

A

B

 BW

C

D

 E F G H I J K L M N O P Q R S SW T U V W

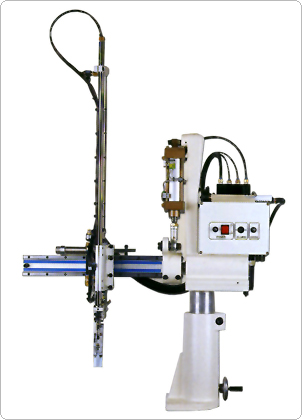

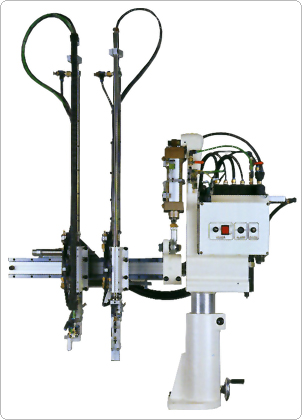

RS-550
S(P,W)

 1080

795

 915

1180

-

 - - - - 380 100 490 50 250 - 280 550 40 75 420 540 - 125 75 35

RS-650
S(P,W)

 1180

795

 915

1280

-

 - - - - 380 100 490 50 250 - 280 650 40 75 420 540 - 125 75 35


MODEL

 POWER SOURCE POWER REQUIREMENT SERVING AIR PRESSURE BASE ADJUSTMENT MAX . LOADING AIR CONSUMPTION

RS-550S

 AC220V ± 10%
50/60 ㎐, 3 PHASE		 MAX.
0.5A, 200V 		5 kgf/㎠ MAXㆍ160㎜ 1 kgf 9.4 Nℓ/cycle
RS-550W 20.8 Nℓ/cycle
