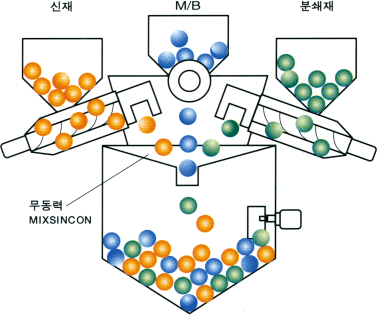

The machine can be used for automated mixing of 2~4 kinds of materials

small quantity as well as in large quantity.

Precision weighing is possible in one setting screw control system of screw

feeder for various types of mixers.

Use to mix materials such as virgin material, scraps, M/B, additives and

each other, can be installed on injection, extrusion and blow molding as

centralized supply system.

Standard Type : Virgin Material+Scraps+Master Batch

Application Type : Virgin Material+Scraps+Master Batch+Additives

Model

Speed Control
Motor(W)

Mixing Capa.
(Kg/Hr)

Dimension(WxLxH) (mm)

Charge Type

Mixing Type

HCM-200

40

100~200

1300x1600x2300

Counter Speed Control Type of Screw Feeder

Down Mixing Type or Agitator Mixing Type

HCM-400

60

300~400

1400x1700x2400

HCM-600

60

500~600

1500x1800x2500

HCM-800

90

700~800

1650x2000x2700

HCM-1000

900~1000

1800x2200x3200

- This specifications is subject to change in case of quality.
